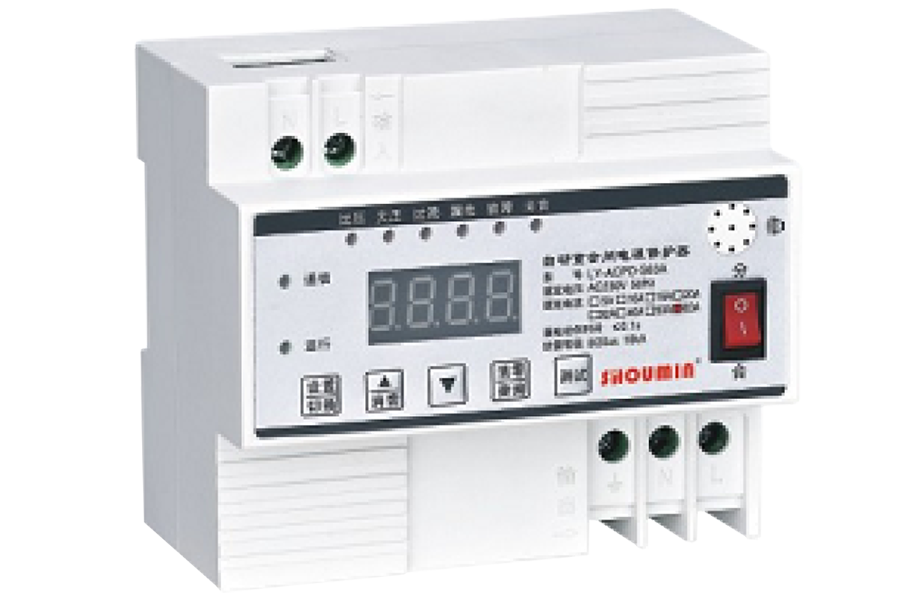

Automatic re-closing protector
Cover material:Flame retardant nylon Pa66leakage protector: 10~90mA
Over voltage protector:220V~280VACUnder voltage protector:145V~ 220VACOver load range:1~63A
Time delay for recovery:30sWorking voltage:220VAC
Installation dimension:108X 67X93Wiring method:Upper inlet wire
Bottom inletwire (A) : 324050 63Sectional area of wire (mm') :6 10 1010
The product apply to the circuit of AC 50/60Hz,rated current 63A and protect the circuit andequipment with failures such as over voltage,
under voltage, over load, short circuit and leakage.
|
